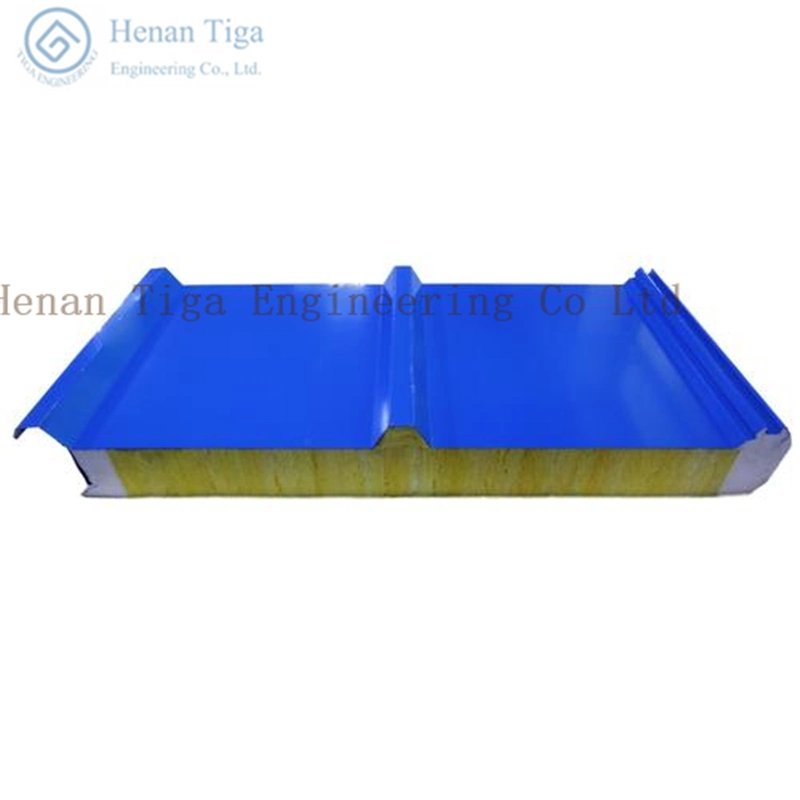

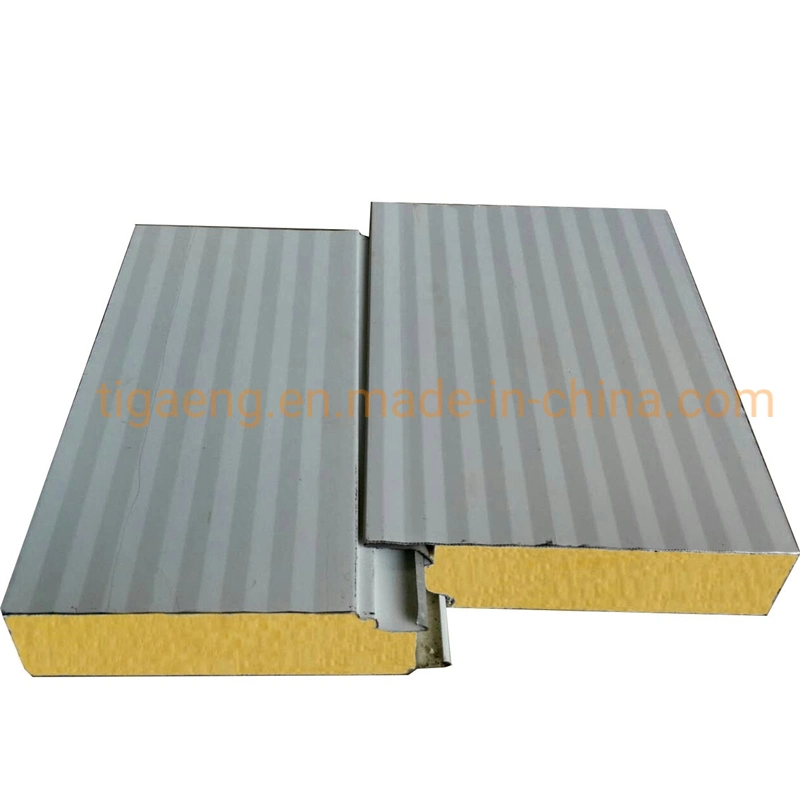

Prepainted / Color Coated Steel Sandwich Panel mainly includes PUR sandwich panel, EPS sandwich panel, Rock Wool sandwich panel and Fiber Glass sandwich panel, etc. these Panels are suitable for the various ceilings, roofs and walls referring to the large-size buildings such factories, warehouses, exhibition halls, gymnasiums, freezing stores, purifications workshops, etc.
Steel Sandwich Panel features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.
The characteristics of color coated steel sandwich panel:
1. Easy and quick to install
2. Excellent load and span capabilities
3. significant savings in site installation costs
4. panel comes in a range of aesthetically pleasuring colors
5. energy saving thermal insulation
6. superior air tightness for controlled environments
7. good reactions to fire properties
8. durable, long lasting, stood the test of time in the extremes of harsh climate
| Specifications of sandwich panel: | ||||
TYPE | EPS SANDWICH PANEL | ROCK WOOL SANDWICH PANEL | Glass Wool Sandwich Panel | |
Double Side Steel | 0.2MM-0.7MM PPGI/COLORBOND/BAO STEEL | |||
Painting | NIPPON PAINTING 10 YEARS ANTI-RUST | |||
Color | BASED ON RAL COLOR OR AS YOUR SAMPLE REQUIREMNT | |||
Core Material | 6-20KG/M3 EPS | PUR | 60-120KG/M3 ROCK WOOL | 30-60KG/M3 GLASS WOOL |
Core Material Thickness | 50MM, 75MM, 100MM,125MM,150MM | |||
Popular for Using | 0.5MM+10KG/M3 50MM EPS | PUR | 0.5MM+80KG/M3 50MM ROCK WOOL | 0.5mm+60 kg/M3 50mm GLASS WOOL |
| Popular for Selling | 0.4MM+10KG/M3 50MM EPS | PUR | 0.4MM+60KG/M3 50MM ROCK WOOL | 0.4MM+40KG/M3 50MM GLASS WOOL |
Core Material Color | WHITE | YELLOW | DARK YELLOW | SHINE YELLOW |
Anti -Fire Grade | B2 GRADE | A1 GRADE | A1 GRADE | A2 GRADE |
| Anti -Water Grade | BEST | BEST | BETTER | BETTER |
Conver Width for Roofing | 960MM/950MM FOR ROOFING | 950MM FOR ROOFING | ||
| Conver Width for Wall | 950MM/1150MM | |||
Expansion WIDTH | ||||
Expansion LENGTH | 5800MM /11800MM, OR CUSTOMIZED | |||
Locking System for Roofing Overlap Part | H TYPE LOACKING WITH ROOFING CAP ACCESSORY | |||
Locking System for Wall | H TYPE LOCKING WITH SELF-DRILING SCREW | |||
Use nature/Suitable for | Tempreture range |
Processing room | 12~19C |
Fruit, vegetable, dry food | -5~+10C |
Medicine, cake, pastry, chemical material | 0C~-5C |
Ice storage room | -5~-10C |
Fish, meat storage | -18~-25C |
Deep freezer, low temperature storage, quick-freeze, blast freezer | -25C~-40C |
Cold room size | Food&Temperature | Door type&Size | Compressor |
2x2x2.5m | Fruit, +5C degree | Hinged door 0.8x1.8m | 1HP Embraco |
10x5x3m | Frozen meat, -20C degree | Sliding door 2.2x2.5m | 28HP Bitzer |
30x20x5m | Seafood, -25C degree | Sliding door 3x3.5m | 4x23HP compressor rack |
| Detailed Specification For EPS Sandwich Roof Panels | |||
| Fireproof grade | B Grade | ||
| Steel sheet Thickness | 0.18mm-0.80mm | ||
| Effective Width | 960mm(roof) or 950mm(wall) | ||
| Length | Arbitrary length , according to the transportation , <12m | ||
| EPS Thickness | 50mm | 75mm | 100mm |
| Zinc Galvanized | 120gr/m2 Minimum | ||
| Paint | 25/7 Micron Polyester Minimum | ||
| Density | 8-20kg/m3 | ||
| Temperature Range | -200°C~+ 150°C Specs | ||
| Water Absorption | Less than 11.8m | ||
| Color | Polyester Varnish With Standard Color Shade | ||
| Certification | ISO9001:2000 | ||
| COMMENT | Qualified. The item tested is in accordance with the national standard of P.R.OF China completely. | ||
| The technical standard of PUR panel | ||||
| No. | Item | Unit | Tel. Requirment | |
| 1 | Density | kg/m3 | 40±2 | |
| 2 | Heat conductivity | W/m.k | <= 0.024 | |
| 3 | Compresive strength | KPa | ≥ 150 | |
| 4 | Combustion | Average buring time | s | <= 90 |
| performance | Average buring range | mm | <= 50 | |
| 5 | The bond strength between core layer and steel | Mpa | ≥ 0.1 | |
| The technical standard of PIR panel | ||||
| No. | Item | Unit | Tel. Requirment | |
| 1 | Density | kg/m3 | 45±2 | |
| 2 | Heat conductivity | W/m.k | <= 0.022 | |
| 3 | Combustion performance | B1 | ||
| 4 | Strippingl | The core material on the surface | Uniform distribution | |
| performance | The adhesive area of each stripping surface | ≥ 90% | ||
| 5 | The bond strength between core layer and steel | Mpa | ≥ 0.1 | |
| Thickness of Sandwich Panel | Application Temperature |
| 50mm | ≥ 5°C |
| 75mm | ≥ -5°C |
| 120mm | ≥ -15°C |
| 150mm | ≥ -25°C |
| 175mm | ≥ -35°C |
| 200mm | ≥ -45°C |
| 250mm | ≥ -55°C |
